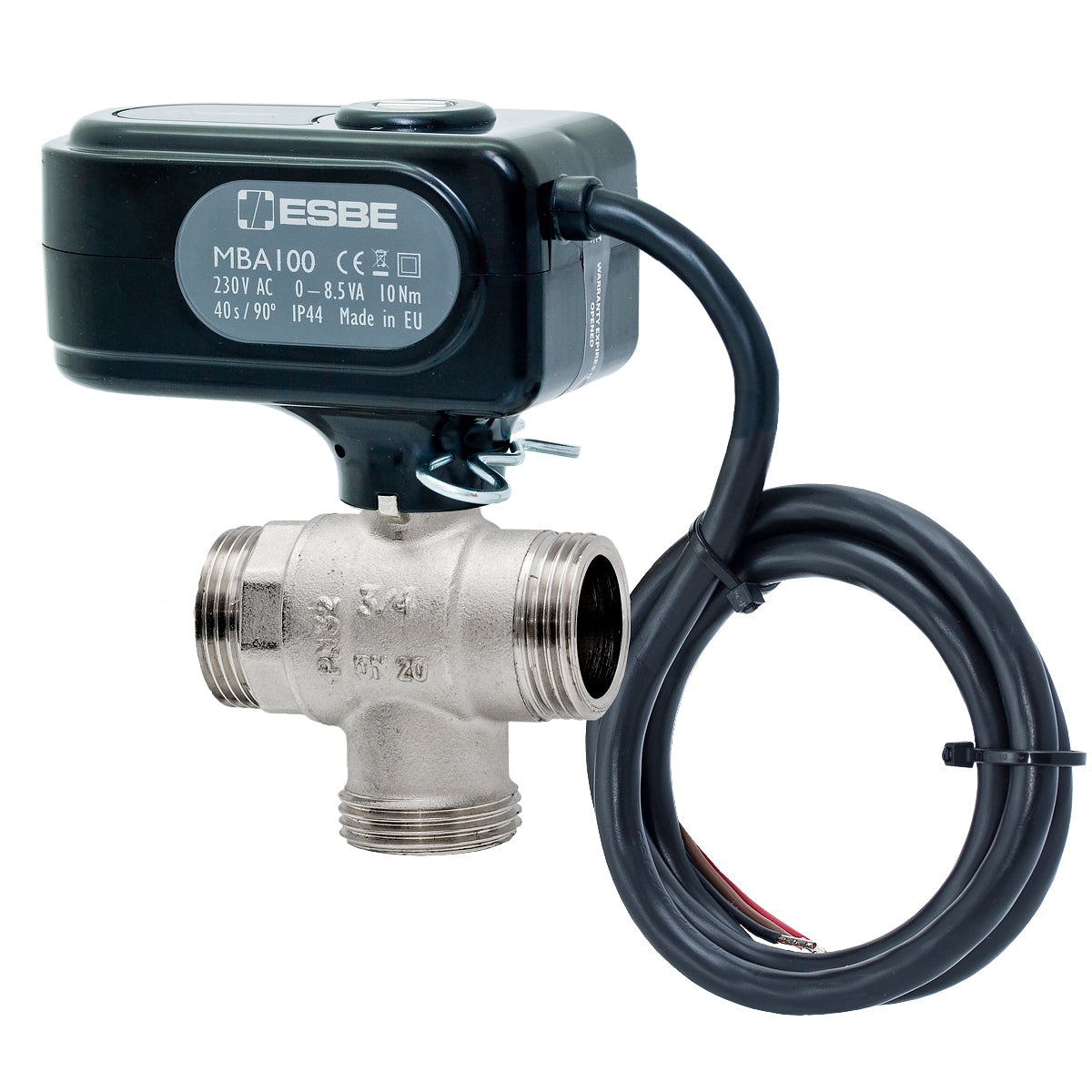

The ESBE series MBA130 is a range of 3-way diverting motorized ball valves with actuator for use in heating and cooling system. The valve is air bubble tight according to EN12266-1.
The actuator is controlled by 2-point signal and is recommended for on/off function, available for 230V AC, 50 Hz power supply. Actuator is supplied with 0.85 meter connection cable attached, auxiliary switch and an anti condensation resistor to prevent condensation on the electronic circuit board.
Actuator is assembled on the ball valve with a metallic spigot that allows to assembly/disassembly the actuator in a secure, simple and rapid way. The ball valve and actuator has an operating range of 90°
